Vintage pinfire cartridges
Left : 7mm - Right 9mm





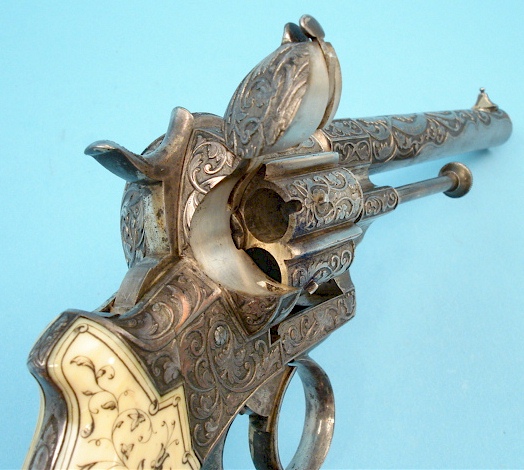

To revive vintage pinfire handguns today is not a simple matter. Of sure, you will find here and there some vintage pinfire cartridges made about 100 years ago at prices in accordance with their rarity (sometimes $50 a piece), but it is not certain - to say the least - that the old primer mixture will again ignite the powder when crushing the pin.

Downloadable EBOOK


Pinfire Pepperbox
Explained

Click here to download



Reloading kit for pinfire cartridges (7mm & 9mm)



9mm pinfire basic kit
Content (packed in wood box) : 9mm pinfire dies and tools + 12 reloadable cases + 12 percussion cap holders + 12 firing pins + 25 lead bullets


Firing pins and cap holders


Current standard reloading kit tooling


How does it work


One quite inovative element, of this kit is the threaded percussion cap holder. It is a  massive piece of brass which no doubt can be used several times before going out of usage.




Being threaded at its base, the holder can accomodate a rod that will help greatly to position the holder inside the cartridge case.

Note that each kit (7mm or 9mm) has its own specific cap holder with different technical caracteristics (the hole section). The firing pins being of different size and thickness.



The inside bottom of the 9mm case (left picture above) is thicker - with a shoulder - to adapt the cap holder, while the 7mm case is straight with the cap holder sliding in it with a few play.





1) Screw the threaded rod to the base of the percussion cap holder, and slide a fresh cap into the holder with the cap's opening facing the small hole in the holder.


IMG_3133.jpg (18493 octets)                       IMG_3134.jpg (30409 octets)

Note that the percussion cap MUST be flush with the holder. If it remains beyond the holder's edge, as shown above, the holder pin hole, and the case pin hole, will not aligne perfectly and you will have difficulties to enter the firing pin.




2) Drive the cap holder to the bottom of the cartridge case, and insert the firing pin through the case hole into the hole of the cap holder.



Percussion cap not installed


Percussion cap installed

The cap holder is now retained in the bottom of the case by the firing pin. Note that when sticking the pin into the case, you can add before a drop of glue on the pin.

WARNING ! Before adding the bullet it is HIGHLY recommended to test one blank cartridge in the gun you intend to use. Especially if it is a revolver. You must be certain that the pin is - or can be - sufficiently pushed inside the case to allow a free rotation of the cylinder. It may be necessary in some cases to grind down the firing pin.

As to the external usual dimensions, pin included, you should near the figures shown below :


7mm pinfire

: 11.5mm

9mm pinfire

: 14mm

12mm pinfire

: 16.5mm




Different gap length between the hammer under face and the cylinder

Note that the pinfire revolver production was all but homogeneous as to the way the hammer is crushing the cartridge pin. The gap between the cylinder and the hammer at rest can vary greatly from one gun to the other as shown above.



This, consequently, has an effect on the way the pin is more or less pushed inside the cartridge by the hammer blow. Should the gab be too larger, and the pin may not hit the primer cap sufficiently to explode it. The strength of the hammer spring has also something to do with the reliability of the firing.




3) Unscrew the threaded rod from the cap holder, and fill the case with the right quantity of black powder.

Note that :

- for the 7mm caliber any black powder should work (coarse to fine granulation - Fg to FFFg). But if your gun is in very good shape, you can chose a fast burning powder with a finer granulation (FFFg).

- for the 9mm caliber, you should use a fast (fine granulation) powder (FFFg or FFFFg) because of  the bullet important dragging inside the barrel, and the rather short case capacity.

The good choice will eventually be the result of experimenting different loads with your own gun.

You should not leave any gap of air between the powder and the bullet. Of course when filling the case you must leave enough space above the powder to allow the seating of the bullet into the case.

Black Powder comes in four granulations. Fg being the coarsest (slowest to burn), and FFFFg being the finest (fastest to burn). You will find the same grades under the following labels : 1Fg to 4fg or even 1F to 4F

Warning ! From now on, a sufficient blow onto the pin can ignite the primer and the powder.



Federal law allows unlicensed individuals to possess no more than 50 pounds of commercially manufactured black powder for use in antique firearms or replicas and reproductions of antique firearms for hunting, sporting or cultural purposes only.  Any other use of black powder is a felony.  Local ordinances may further restrict the possession and storage of black powder,  It is your responsibility to know and obey local statutes and regulations.




4) Place the cartridge case on the slitted basement as shown above, and place a bullet onto the case opening. Then put the crimper block on the basement.

You will note that the bullet is shaped with a shoulder. This will help you to know how deep the bullet must be pushed inside the case. All the bullet body under the shoulder must be inside the case.


Note that the former adjustable pushing rod (left) has been replaced by a new non adjustable one (right)

5) Inserting the bullet into the case with the required deepness, is precisely done thanks to a pushing tool.

This tool is a cylindrical casing into which is screwed a large rod with a concave under face to mate the bullet head profile, and a nut on its upper portion to set the right deepness of the rod that slides into the crimper block channel.

To determine the exact deepness you will install the first bullet by pushing it through the pushing tool (using a light non marring hammer) until you feel - or better you see - that the bullet shoulder is at the cartridge case upper edge level.

Then, while maintaining the pushing rod in contact with the bullet's head, turn the pushing tool casing down until it is against the crimper block. When it is done, screw firmly the nut against the casing.

The pushing rod is set now at the right deepness for the cartridges to come.

For the next cartidges, just install the bullet on the case, put the pushing tool on the crimper block, and use a mallet to drive the bullet inside the case through the pushing tool rod (which is now locked by the nut to the right height).



CRIMPING PUNCHES NO LONGER FURNISHED
(Considered unuseful)

6) If for any reason you want the bullet to be more crimped by the case, you can use the two small punches furnished to this effect.

The two punches must be inserted in the lateral holes of the crimper block as shown above. The space between the punches and the crimper block surface indicates the deepness of the penetration into the cartridge case when the blow will occur.

Take care to not puncture the cartridge case when performing this additionnal crimping.

To prevent a possible perforation of the cartridge case you can :

- Adjust the punches length by filing them down.
- Or add a strip of adhesive tape around the crimper block to enlarge its diameter to the required thickness.
- Or add washers to the punches.




In some revolvers, the firing pin, when positioned vertically, can affect the good rotation of the cylinder. You can solve the problem by slightly slanting (about 3 degrees) the firing pin toward the rear.



AFTER THE FIRING :

1) De-caping

Remove the firing pin. Screw the threaded rod into the percussion cap holder, and pull it out of the cartridge case.

If you want to re-use the case and the cap holder, do not forget to clean them. You can use hot water with some sort of current ammoniacal detergent.




8) To resize the case, use the crimper block as a swaging die (shown above). Do not forget to externally lubricate the case before forcing it into the tool.




9) When the case is resized, eject it with the rod furnished to this effect, by pushing it out of the crimper block as shown above. The case is now ready for another reloading.

If used in rather well calibrated guns with clean smooth chambers such cases should be reloaded five or six times before being discarded as a safety measure. But ALWAYS check attentively the case before any re-use. And specialy in the weaker area of the firing pin hole.
