Fonctionnement de la platine Holland & Holland

Certains fusils à canons basculant possèdent un mécanisme de percussion sur platine. Ces deux plaques (platines) sont visibles de part et d'autre de la bascule. Parmi les plus connues, la platine Holland & Holland. Les armes qui en bénéficient sont en général d'un prix élevé, car leur ajustage fin nécessite une main d'oeuvre très qualifiée et par conséquent relativement coûteuse.



Platine Aya

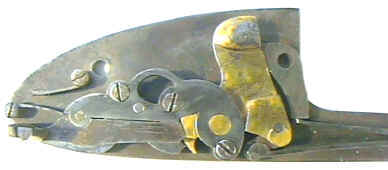

Cette platine Holland & Holland récupérée pour analyse, comporte un ressort brisé. Il s'agit du ressort de gâchette (en haut à gauche).



Home

fusil Aya - bascule platine Aya

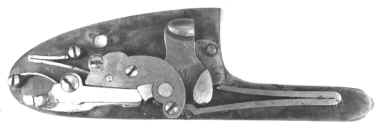

Comme on peut le constater sur l'exemple ci-contre (fusil de marque Aya), la platine est encastrée pour moitié dans la bascule et pour moitié dans la monture. La bascule subit donc un important et délicat travail de fraisage.

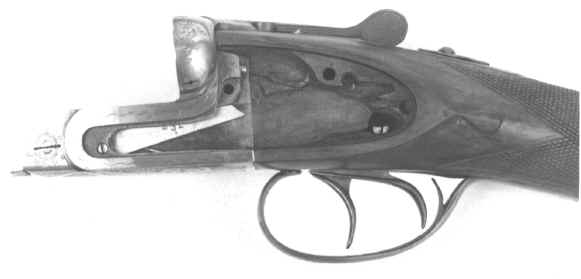

A remarquer le bras armeur du chien en position relevée. On distingue aussi un bout du percuteur, ainsi que les deux leviers des gâchettes de la platine droite.

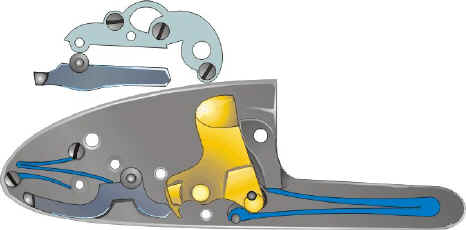

platine Holland démontéegros plan sécurité Holland

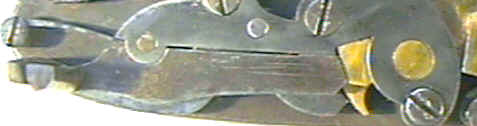

Le mécanisme de la platine Holland & Holland est caractérisé par sa double gâchette. En réalité, la gâchette principale (en dessous), est doublée par une pseudo gâchette qui sert en fait de sécurité pour retenir le chien en cas de mauvais accrochage ou de décrochage accidentel de la gâchette principale.


marteau armé  Chien armé, accroché par la gâchette.


marteau bloqué par sécuritéLe chien a été décroché involontairement et rattrapé par la gâchette de sécurité.

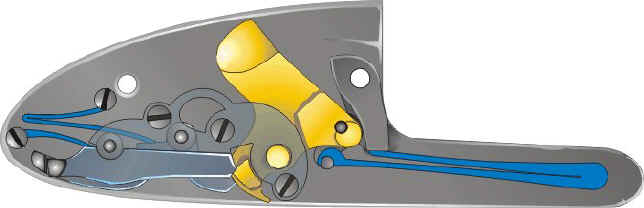

Lors du tir, la détente commence par soulever la gâchette de sécurité, tout en désengageant progressivement la gâchette (dessin ci-dessous).




fonctionnement platine Holland
