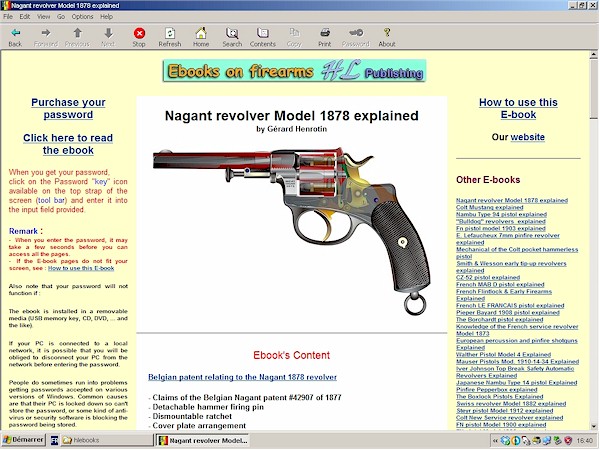

Nagant revolver Model 1878 explained

Price : 7.95 US $

Download URL for manual installation
Click on the line above

Download URL for automatic installation
Click on the line above


Version for Android mobile devices






Ebook's Content


Belgian patent relating to the Nagant 1878 revolver

- Claims of the Belgian Nagant patent #42907 of 1877
- Detachable hammer firing pin
- Dismountable ratchet
- Cover plate arrangement
- Trigger guard used a mounting tool for the springs

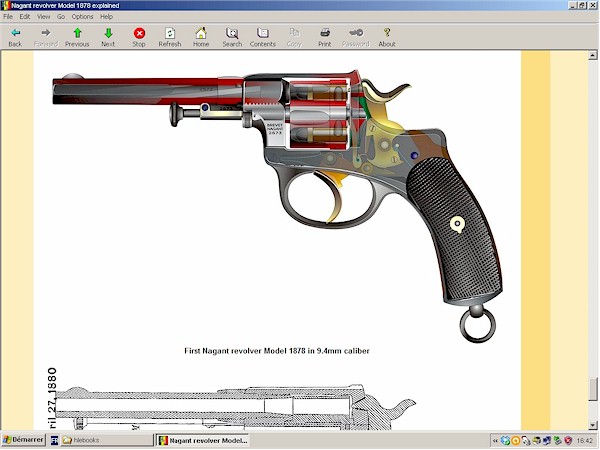

- First Nagant revolver Model 1878 in 9.4mm caliber
- Corresponding US Patent #226.923 dated April 27, 1880

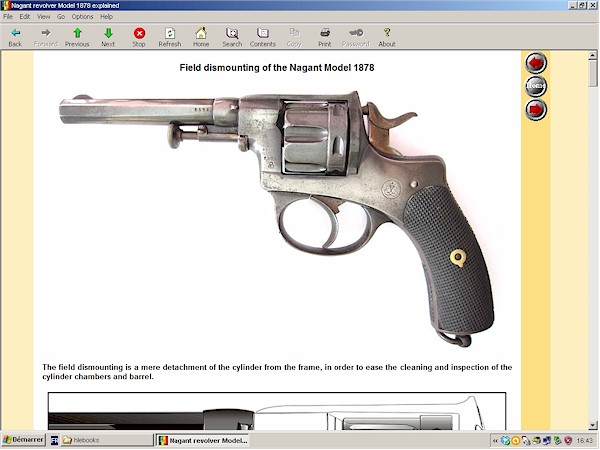

Field dismounting of the Nagant Model 1878

- Cylinder axis rod blocked by the ejection rod holder
- Locking stud of the friction leaf spring
- Unlocking of the cylinder axis rod
- Extraction of the cylinder

Advanced dismounting of the Nagant Model 1878 (1)

- Dismounting of the ejection rod
- Disassembly of the cylinder axis rod
- Dismounting of the cover plate
- Dismounting of the trigger guard

Advanced dismounting of the Nagant Model 1878 (2)

- Dismounting of the mainspring
- Dismounting of the hammer
- Dismounting of the sear
- Dismounting of the pawl
- Dismounting of the trigger
- Dismounting of the trigger return spring

Advanced dismounting of the Nagant Model 1878 (3)

- Dismounting of the right side grip plate
- Dismounting of the left and intermediary plates
- Dismounting of the loading gate
- Dismounting of the lanyard ring

Markings on the Nagant Model 1878 (1)

- Belgian military markings on the frame
- Serial number on the frame
- Other markings on the frame

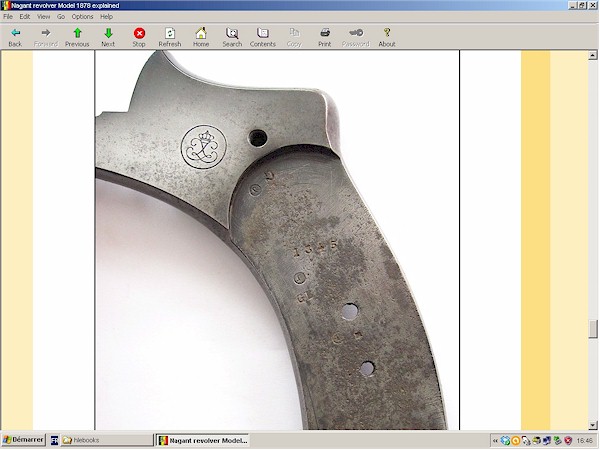

- Cylinder marking
- Markings on the cylinder axis rod
- Markings on the ejection rod
- Markings on the cover plate
- Serial number on the ebony grip plates

Markings on the Nagant Model 1878 (2)

- Serial number on the loading gate
- Markings on the trigger guard
- Markings on the hammer
- Markings on the sear
- Markings on the trigger
- Markings on the pawl
- Marking on the mainspring
- Markings on the lanyard ring post

Functioning of the Nagant Model 1878 (1)

- The 9.4mm Nagant - Bachmann cartridge
- 30-30 shell trimmed down
- Seating of the bullet
- Gap between the recoil shield and the cylinder
- The hammer safety notch

Functioning of the Nagant Model 1878 (2)

- Functioning in single action mode

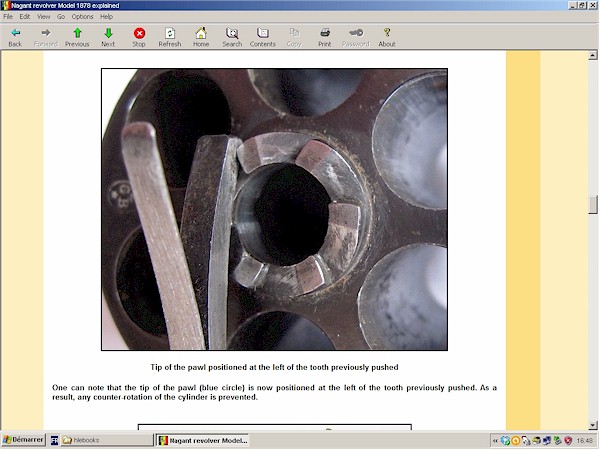

- Action of the pawl
- Locking bump on the trigger
- Functioning in double action mode
- Hammer rotation in double action mode
- Hammer strut pushed backwards

The variants of the Nagant Model 1878

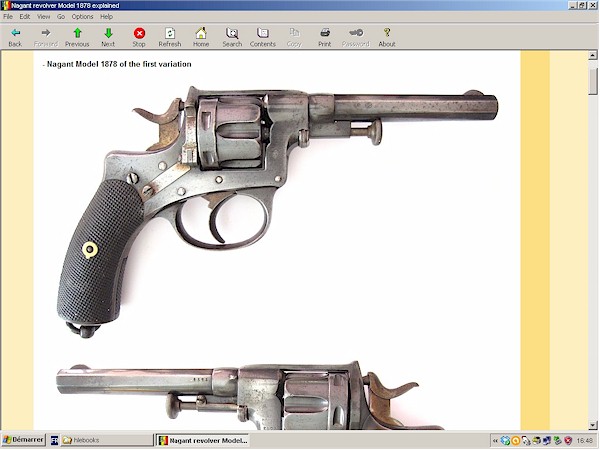

- Nagant Model 1878 of the first variation
- The removable taller front sight
- Nagant Model 1878 of the second variation
- Nagant 1878 of transition

The Nagant revolver Model 1883

- Nagant Model 1883 of the first variation
- Comparison between the 1878 and 1883 mechanisms

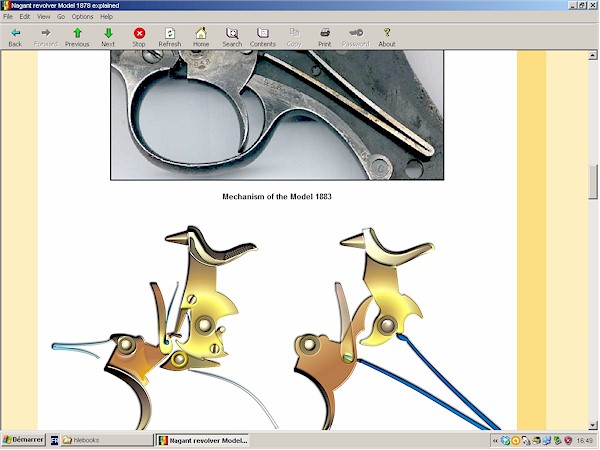

- Functioning of the 1883 lock mechanism
- Nagant model 1883 of the second variation (1883-87)

The Nagant revolver Model 1878-86

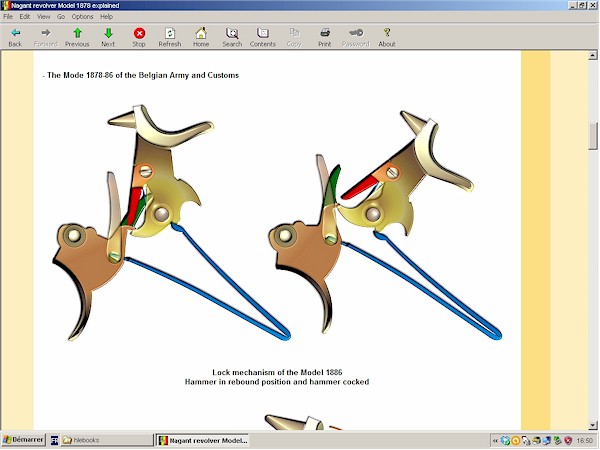

- The Mode 1878-86 of the Belgian Army and Customs
- Model 1878-86 of the first variation
- Model 1878-86 of the second variation
- Model 1878-86 of the third variation
- The Model M1884/87 for Luxembourg

The Nagant revolvers sold in foreign countries

- The Nagant revolver in caliber 7.5mm
- The Nagant revolvers for Sweden
- The Nagant revolvers for Norway
- The Nagant revolvers for Serbia
- The Nagant revolvers of big caliber

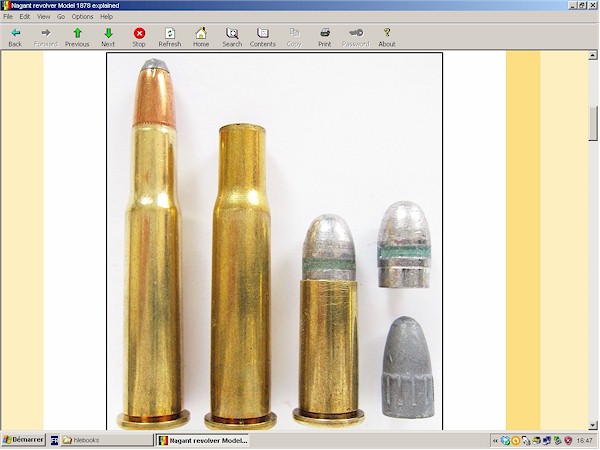

Ebook screen prints
