French MAB D pistol explained

Price : 7.95 US $

Download URL for manual installation
Click on the line above

Download URL for automatic installation
Click on the line above


APP version for Android mobile devices






Ebook's Content

Field dismounting of the MAB D pistol (I)

- Simplified field dismounting
- Release of the striker

Field dismounting of the MAB D pistol (II)

- Regular field dismounting
- Withdrawal of the slide bushing

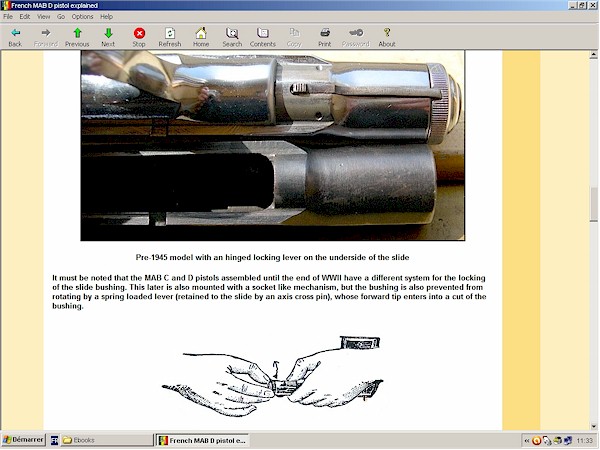

- Particular of the pre-1945 variation

Advanced dismounting of the MAB D pistol (I)

- Advanced dismounting of the slide
- Dismounting the grip safety

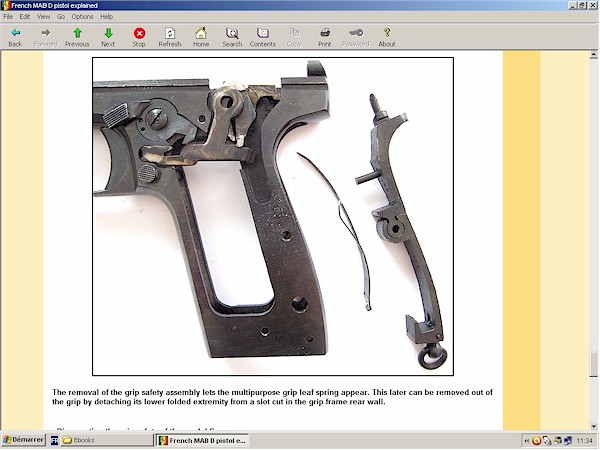

- Multipurpose grip leaf spring
- Dismounting the grip safety of the model C
- Model C of later production

Advanced dismounting of the MAB D pistol (II)

- Dismounting of the trigger mechanism
- Dismounting of the manual safety
- Dismounting of the magazine catch
- Index of the parts

Functioning of the  MAB D pistol (I)

- Blowback operated pistol
- Rear barrel extension
- Explosion and early stage of the recoil
- Frame rails to guide the slide

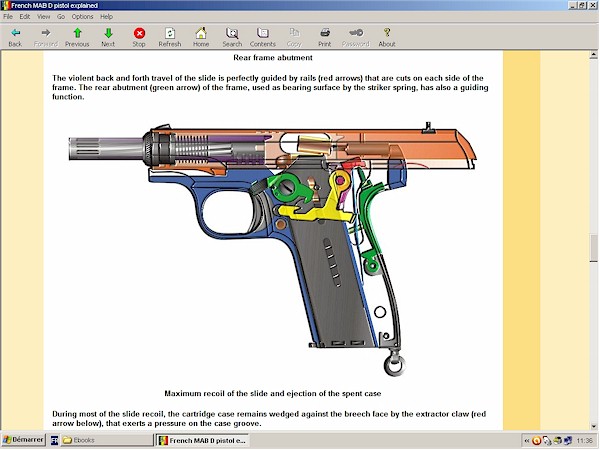

- Rear frame abutment
- Maximum recoil of and ejection of the case
- Forward tip of the striker used as ejector
- Forward travel of the slide
- Feeding ramp

Functioning of the  MAB D pistol (II)

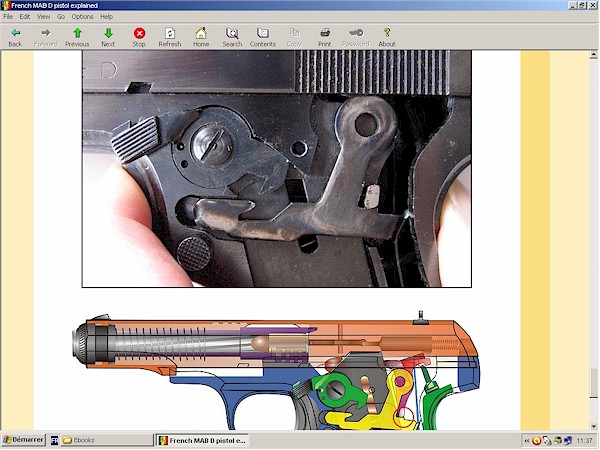

- The MAB D trigger mechanism explained
- The sear and its side lever
- When a magazine is not inserted in the grip
- The trigger disconnection explained

Functioning of the  MAB D pistol (III)

- The manual safety of the MAB D

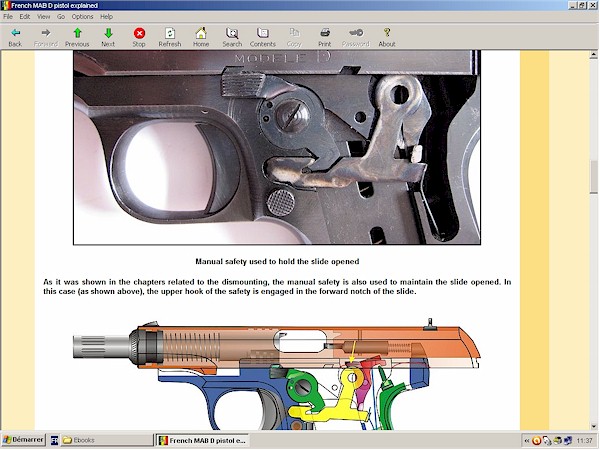

- Second function of the manual safety
- The grip safety of the MAB D
- Side effect of the grip safety

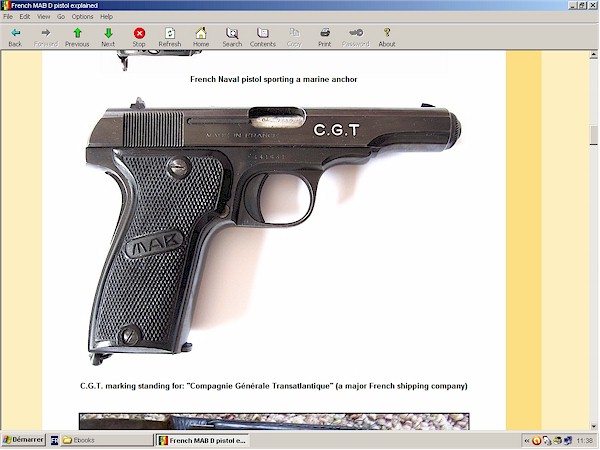

The markings on the MAB D pistol

- Markings on the left side of the slide
- In the early series
- The second type of slide marking
- The last type of slide marking
- Markings on the right side of the slide
- The MAB pistols sold on the US market
- Winfield Arms Corporation (WAC)
- The MAB pistols produced for the German army

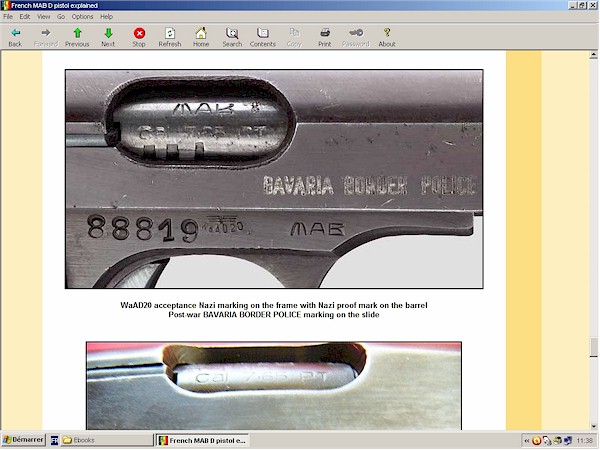

- Acceptance Nazi markings
- Spurious Nazi markings on post-war MAB pistols
- The markings on the barrel's chamber

The serial number of the MAB D pistol

- First serial numbers by model  (until 1958)
- Chart of some serial number prefix letters

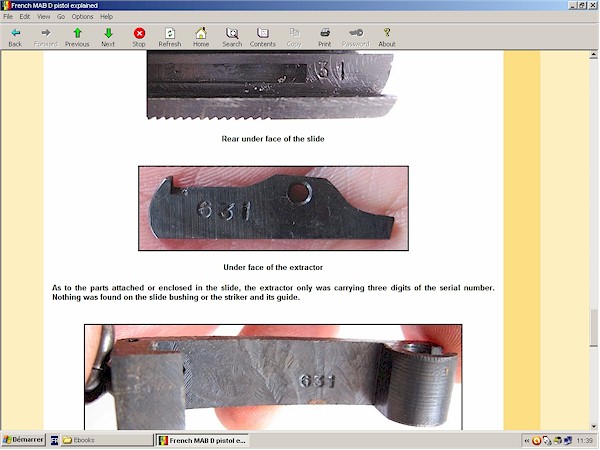

- Location on secondary parts of the serial number

The production of the MAB (I)

- MAB model A pistol of the first type

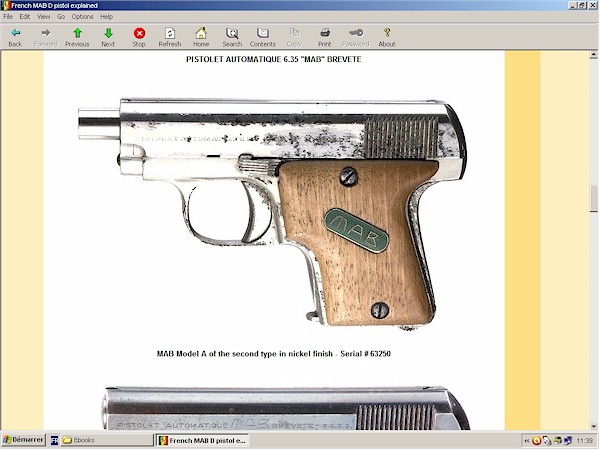

- MAB model A pistol of the second type
- MAB model B pistol

The production of the MAB (II)

- MAB model C pistol
- MAB model D pistol
- MAB model C/D pistol
- MAB model E pistol
- MAB model F pistol
- French user manual of the MAB F

The production of the MAB (III)

- The MAB pistols of the R series
- Hold-open latch
- MAB model R in caliber 7.65mm (.32 ACP)

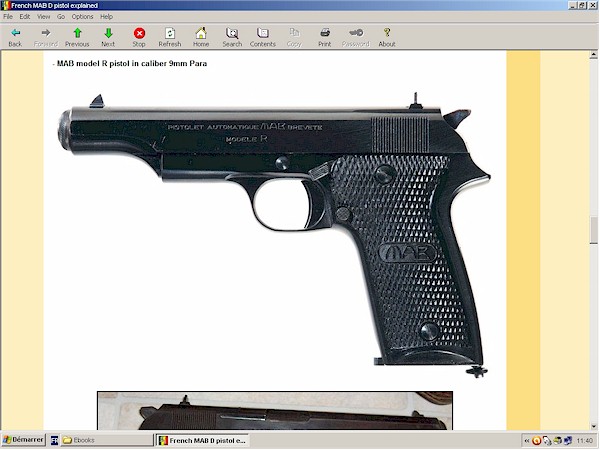

- MAB model R pistol in caliber 9mm Para
- Experimental MAB model R in 9mm Para
- MAB model R pistol in .22 caliber

The production of the MAB (IV)

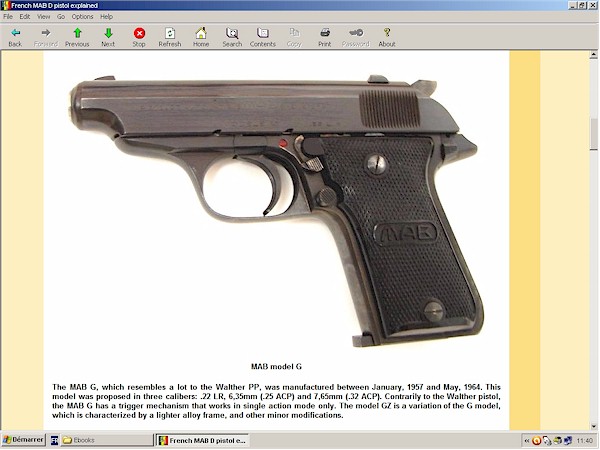

- MAB model G and GZ pistols
- Exploded view of the MAB model G
- MAB GZ produced by the Spanish firm Echasa
- MAB model P8 pistol
- MAB model P15 pistol
- MAB model P15 F1 pistol

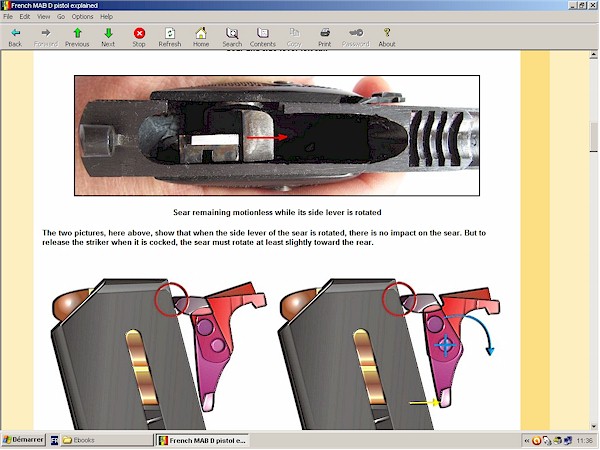

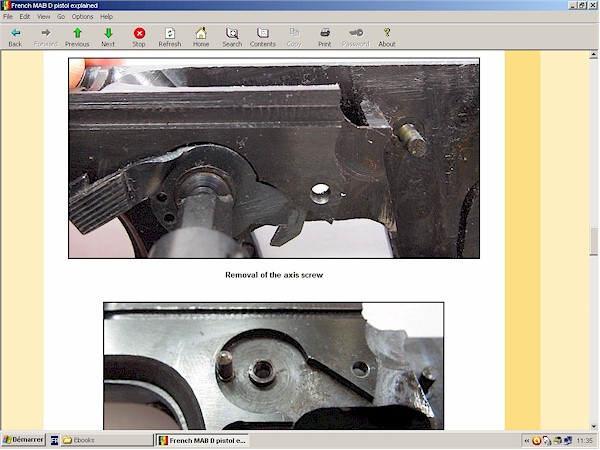

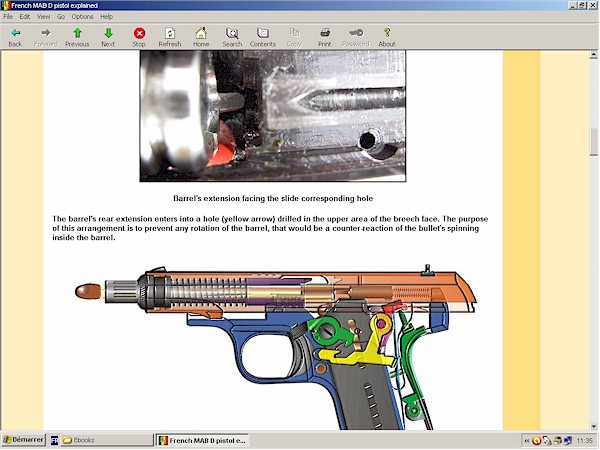

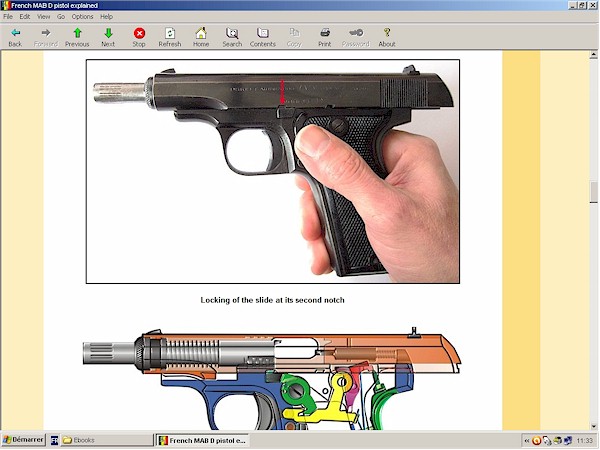

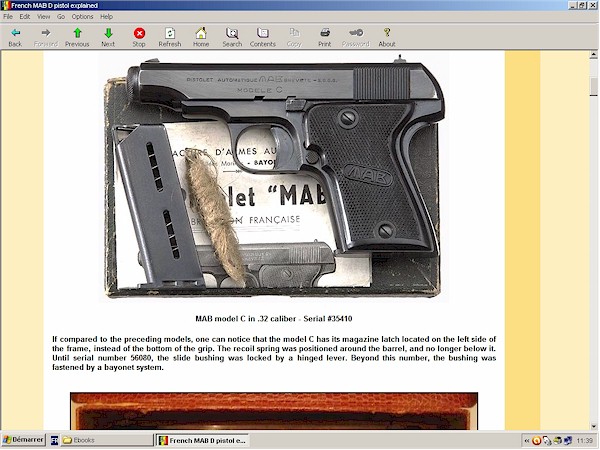

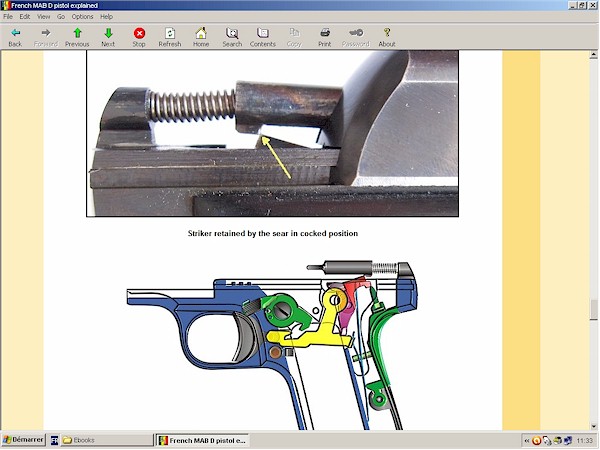

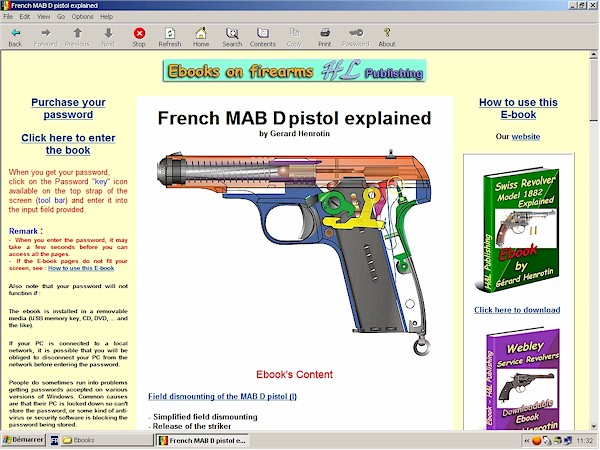

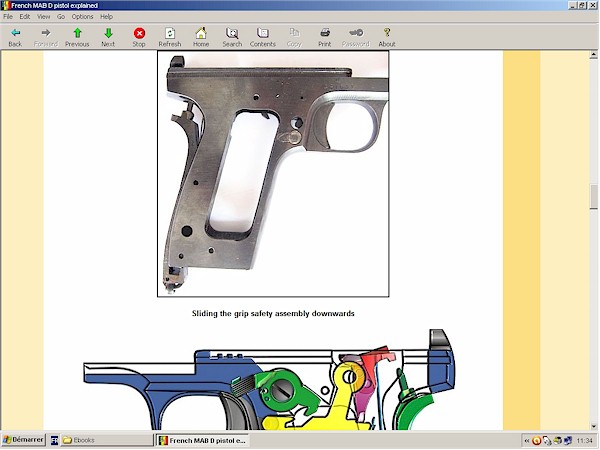

Ebook screen prints

French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
French MAB D pistol
