Remarque importante :
Pour pouvoir lire cet E-book, vous avez besoin d'un ordinateur équipé de
Microsoft Windows 95, 98, NT 4 ou 2000, et Internet Explorer 4 ou plus récent installé. Si vous utilisez habituellement Netscape ou un autre logiciel de
navigation, vous pouvez le conserver comme navigateur mais vous devez
néanmoins installer en parallèle le navigateur Microsoft Explorer.
Contenu du ebook
Démontage
de campagne du pistolet FN 1900 (I)
- Démontage de
la glissière
Démontage
de campagne du pistolet FN 1900 (II)
- Démontage du
bloc culasse
- Nomenclature des pièces
Démontage
avancé du bloc culasse
- Démontage de
l'extracteur
- Démontage du levier d'armement

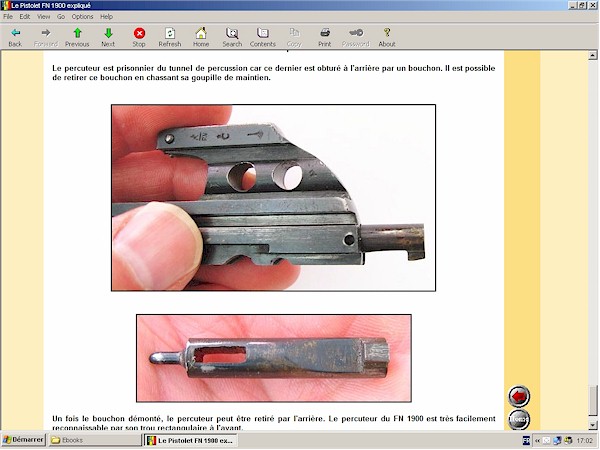

- Démontage du percuteur
Démontage
avancé de la carcasse (I)
- Démontage des
plaquettes de crosse
- Démontage des autres éléments de la poignée
Démontage
avancé de la carcasse (II)

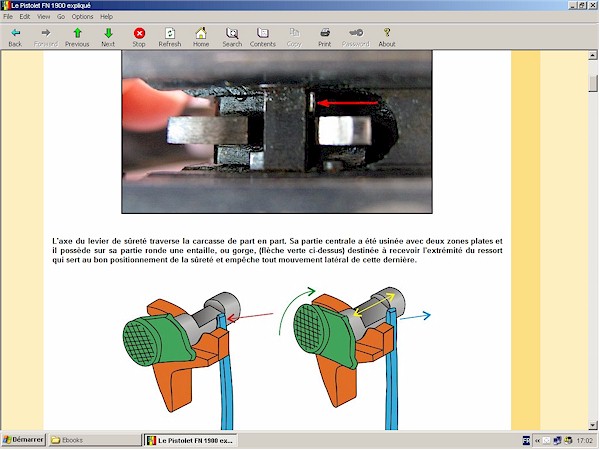

- Démontage du
levier de sûreté
- Démontage de la gâchette
- Truc pour le remontage de la gâchette
- Réinstallation du bloc culasse
Fonctionnement
du pistolet FN 1900 (I)
- Chambrage
d'une cartouche
- Armement du percuteur
Fonctionnement
du pistolet FN 1900 (II)

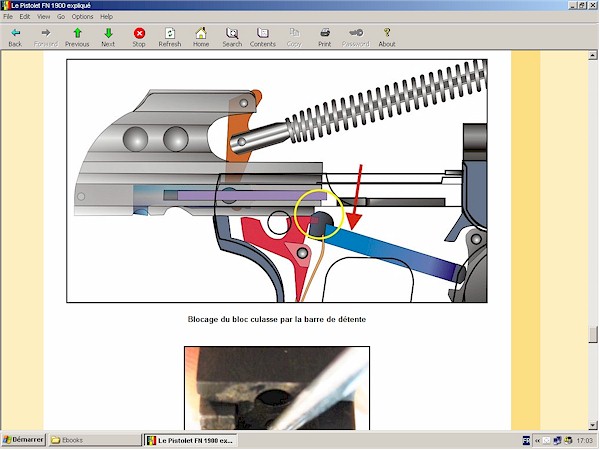

- Fonctionnement
de la détente
- Extraction et éjection de l'étui de la cartouche
Le
système de sûreté du FN 1900
- Action de la
sûreté quand elle est non-active
- Action de la sûreté quand elle est active
Le
cycle de tir du FN 1900
- Inclus une séquence animée du cycle de tir
- Marquages belges
Les
origines du modèle FN 1900
- Brevet 580.926
- Prototype Browning fonctionnant à culasse non calée
- Brevet 621.747 protégeant le second prototype à culasse non calée
- Deuxième prototype détaillé
La
production du pistolet FN 1900
- Les pistolets
FN Modèles 1899 et 1900
- Le pistolet FN Modèle 1900 (Armée belge)
- Le pistolet FN Modèle 1900 version large
Collectionner
le pistolet FN 1900
- Modèle 1900
prix courants
- Modèle 1900 à long canon pour l'Autriche-Hongrie
- Marquages de Police allemande sur un modèle 1900
- FN 1900 en version gravée de luxe
- Copies exotiques du pistolet FN 1900
The
Savage 1907 Pistol
This is our very first e-book and probably the very first to have been ever
issued in the firearm field. Download it for free and test it
on your PC. Discover what is possible today with the new technologies in this high
demanding field of firearm documentation. This e-book includes two
animated colored drawings of the internal workings of the gun. Jump into the future of the
technical documentation.
Reloading kit for pinfire
cartridges (7, 9 & 12mm) Revive your antique guns
Les Pistolets Colt - 100 ans de
production
This volume, published in 1998 is the second work relating to firearms written by
the Belgian author Gérard HENROTIN. As in his first title
issued in 1996 : "La Connaissance du Luger",
it includes a great variety of technical pictures, drawn from the infographic technology.
This ultra-modern process, used for the first time at this level in the firearms
literature, allows to reach one of the most difficult goal : the close understanding of
the firearms mechanical operation. All the illustrations of this site are stemming from
the same graphical craft present throughout the book. Our long chapter in this site,
relating to the Colt pistols will enlighten what kind of data you are supposed to find in
this beautifully illustrated book. Not only you will learn how these handguns function,
but you will get their complete historical background and various markings explanations. A
one of its kind book, that leaves the reader with a feeling of great satisfaction. In the
index below you will find some links to other pages with graphical illustrations. Book content and
how to order
La
Connaissance du Luger
This French book, published in 1996, is the first work of the Belgian author Gérard
HENROTIN relating to firearms. It is probably as well the first book using
at this level the infographical technologies in the firearms field. To fill that
challenge, many competences had to be gathered to offer a technically reliable content in
a modern and attractive form. These two objectives were reached to such an extend that the
volume became de facto the French reference on this famous German pistol.
This book was written to give a clear understanding of the pistol and its background, but
also to offer the demanding reader a true piece of art. You will find in our Luger
section, some illustrations drawn from the book, which includes some 600 color drawings
and 120 pictures. Book content and
how to order
