Clement pistol model 1909 explained

Price : 7.95 US $

Download URL for manual installation
Click on the line above

Download URL for automatic installation
Click on the line above


Version for Android mobile devices






Ebook's Content

Field stripping of the Clement 1909 pistol

- Removal of the magazine from the grip
- Dismounting of the barrel unit
- Dismounting of the breechblock
- Inspection of the grip rear aperture

Advanced dismounting of the Clement 1909 pistol (1)

- Dismounting of the grip plates
- Dismounting of the trigger unit
- Dismounting of the mainspring housing latch
- Dismounting of the mainspring housing

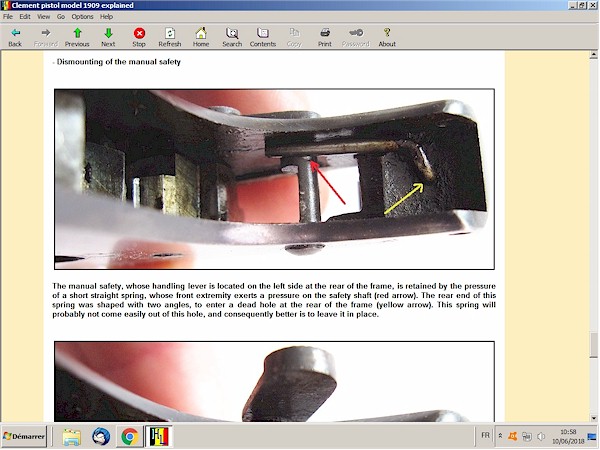

- Dismounting of the manual safety

Advanced dismounting of the Clement 1909 pistol (2)

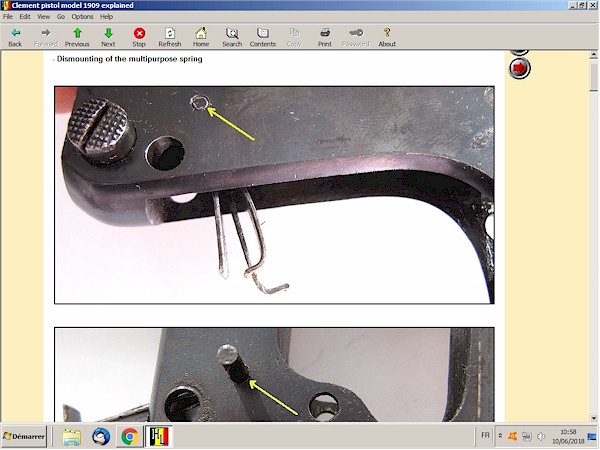

- Dismounting of the multipurpose spring

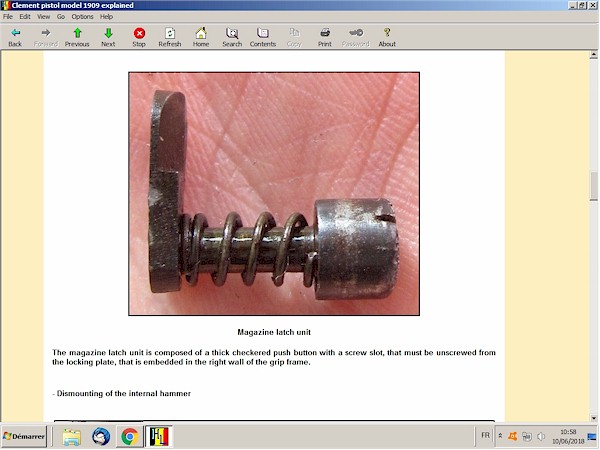

- Dismounting of the magazine latch
- Dismounting of the internal hammer
- Dismounting of the sear
- Dismounting of the trigger guard

Advanced dismounting of the Clement 1909 pistol (3)

- Dismounting of the recoil spring
- Dismounting of the extractor
- Dismounting of the firing pin
- Dismounting of the ejector
- Index of the pistol parts

Functioning of the Clement 1909 pistol (1)

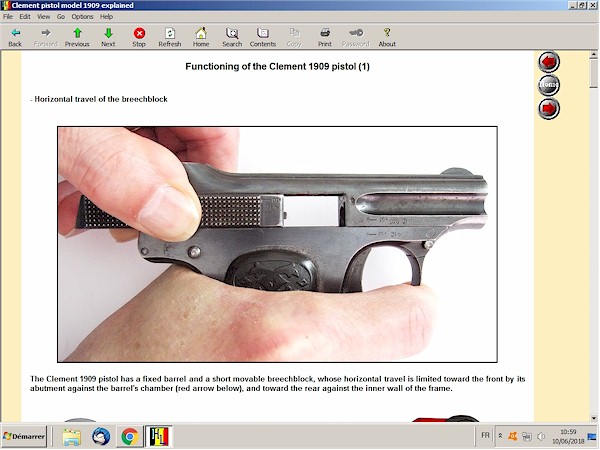

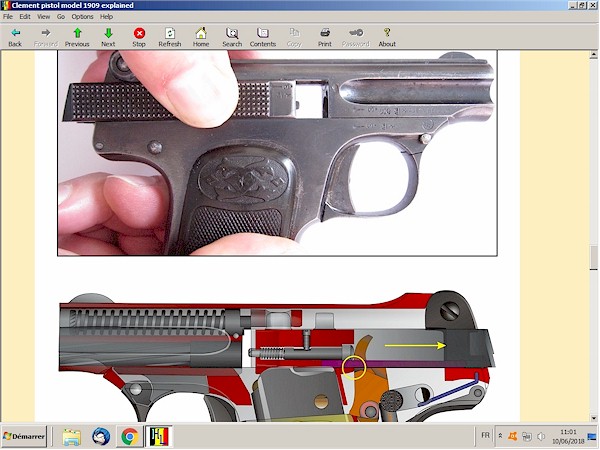

- Horizontal travel of the breechblock
- Firing pin tip protruding beyond the breech face
- Horizontal travel of the trigger

Functioning of the Clement 1909 pistol (2)

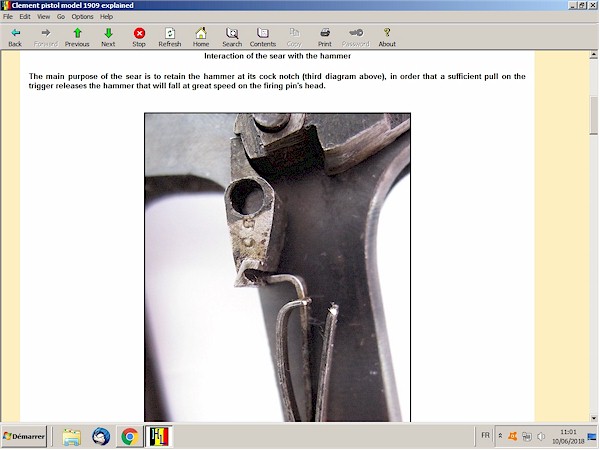

- Interaction of the sear with the hammer
- Interaction of the trigger with the sear

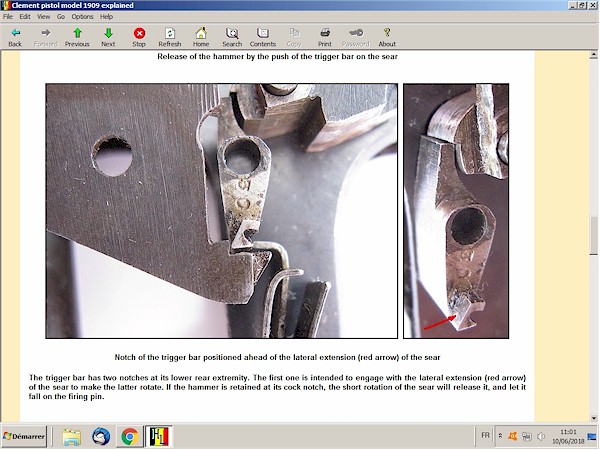

- Interaction of the hammer with the trigger bar

Functioning of the Clement 1909 pistol (3)

- Calibers and magazine of the Clement 1909 pistol
- Chambering of a cartridge

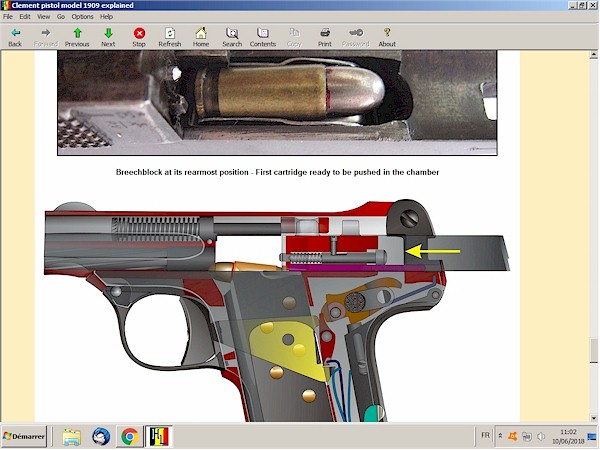

- Upwards pushing of the cartridges column inside the magazine
- Cartridge pushed toward the chamber

Functioning of the Clement 1909 pistol (4)

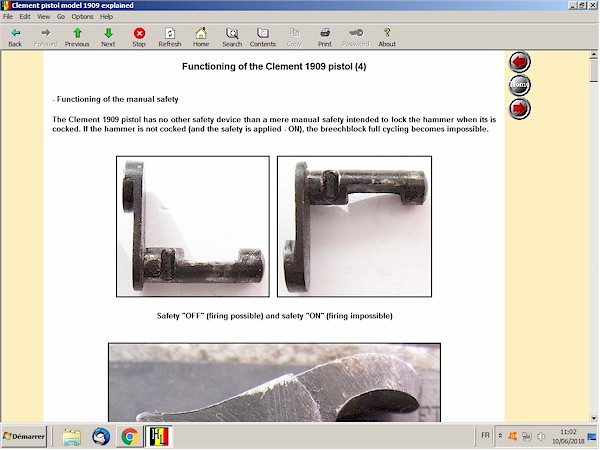

- Functioning of the manual safety
- Hammer stuck in abutment against the safety spindle
- Breechblock prevented to move fully rearwards
- Percussion of the cartridge primer
- Explosion of the cartridge
- Disconnection of the trigger bar

Functioning of the Clement 1909 pistol (5)

- Extraction and ejection of the cartridge case
- Reconnection of the trigger bar with the sear

The Clement pistol model 1903

- 5 mm Clement cartridge
- Charola y Anitua pistol in caliber 5 mm
- Clement 1903 mechanism
- Variations of the Clement 1903 pistol

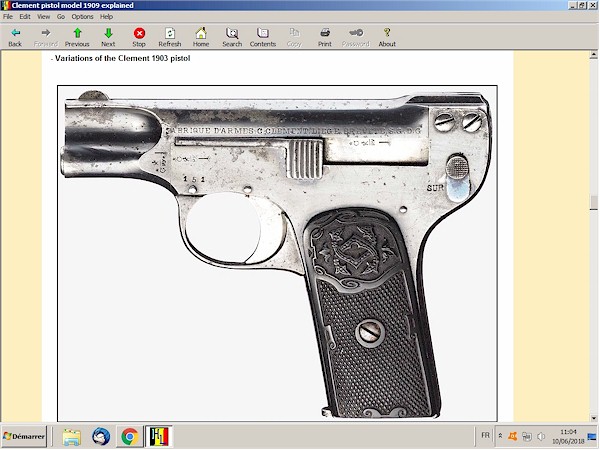

- First variation (larger groove at the front)
- Second variation (groove at the front of common size)
- Third variation (change in the wording of the firm marking)
- Adapted to the .25 ACP caliber

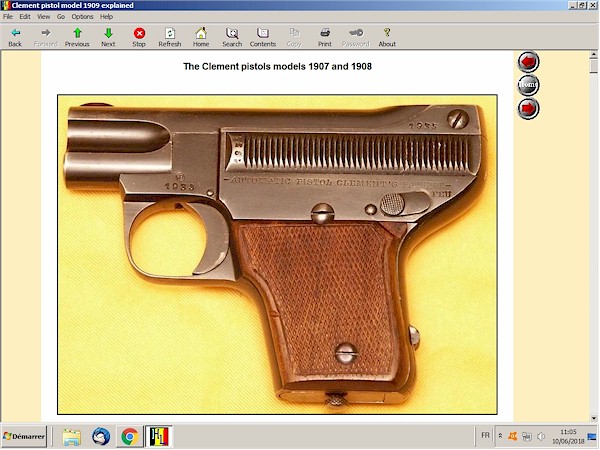

The Clement pistols models 1907 and 1908

- Mechanism of the Clement pistol model 1907

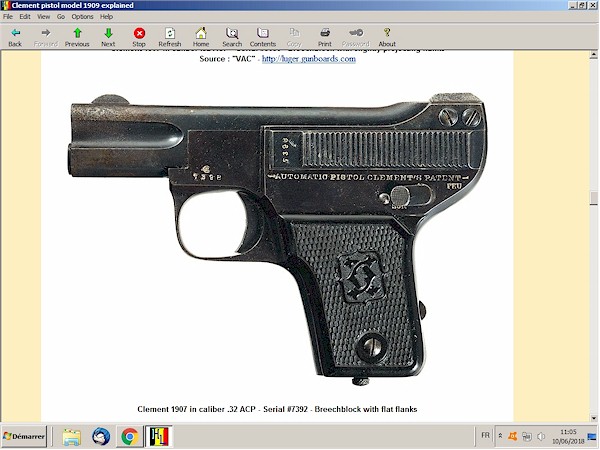

- Designed for calibers .25 ACP and .32 ACP
- Breechblock with slightly projecting flanks
- Breechblock with flat flanks
- Clement transitional 1907-1908

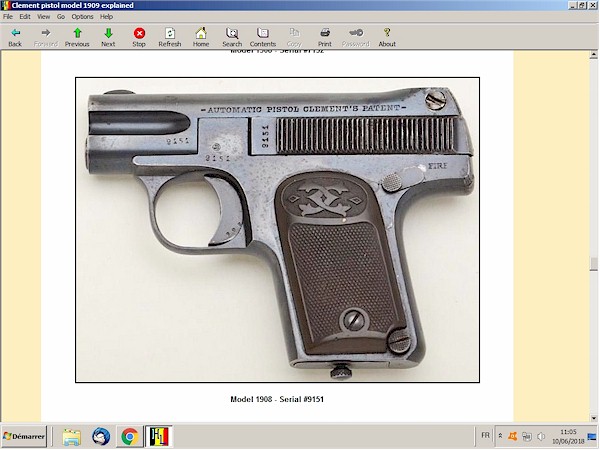

- Clement pistol model 1908
- Clement model 1908 internal mechanism

The Clement pistols models 1909 and 1912

- Clement pistol 1909 in caliber .25 ACP
- Variations of the barrel length
- U.S. patent #970307 of 09/13/1910

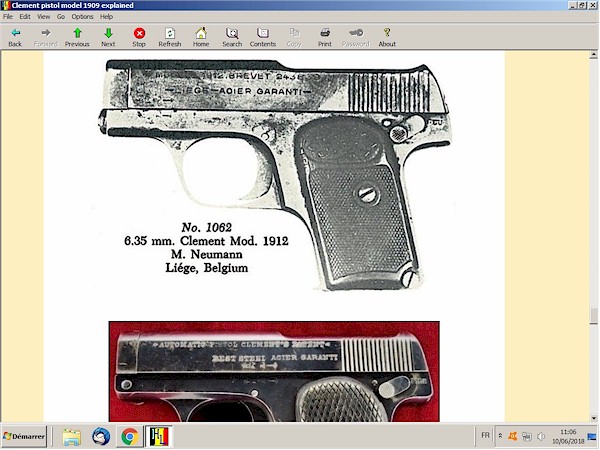

- Clement model 1912 in calibers .25 ACP and .32 ACP
- Clement "Fulgor" 1912
- Clement Model 1912 in .32 ACP
- Model 1912 with the top of the slide cut off
- Prototype of model 1912 in caliber 9mm

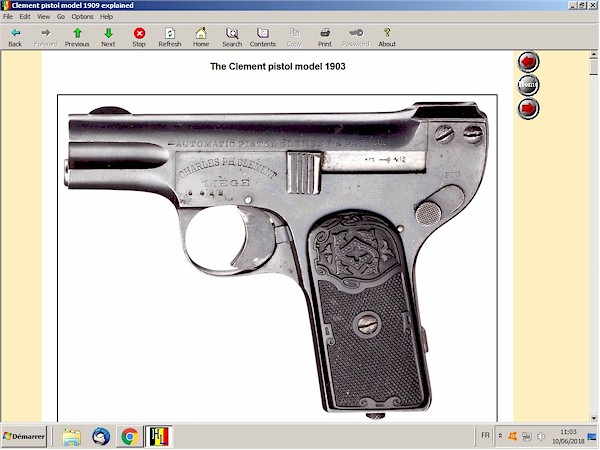

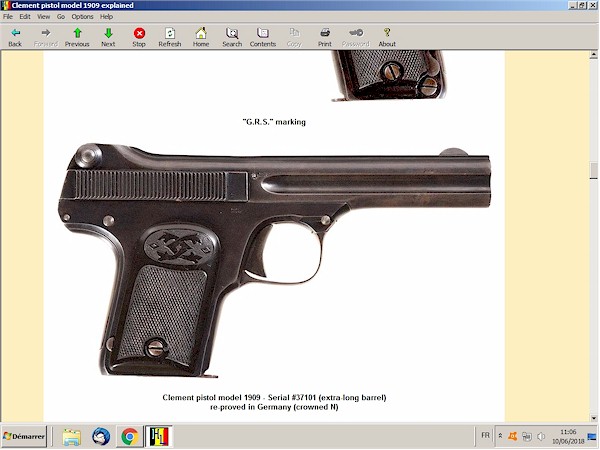

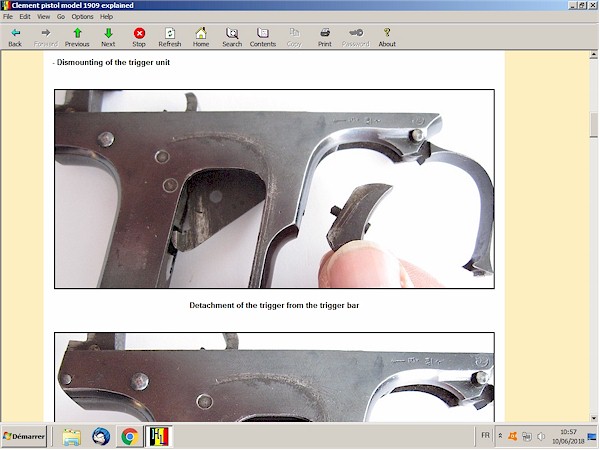

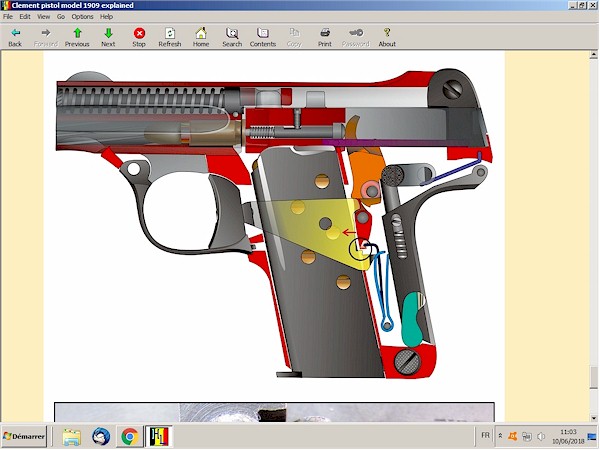

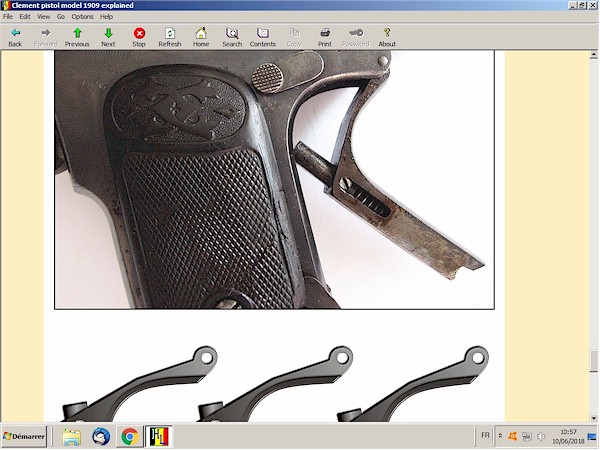

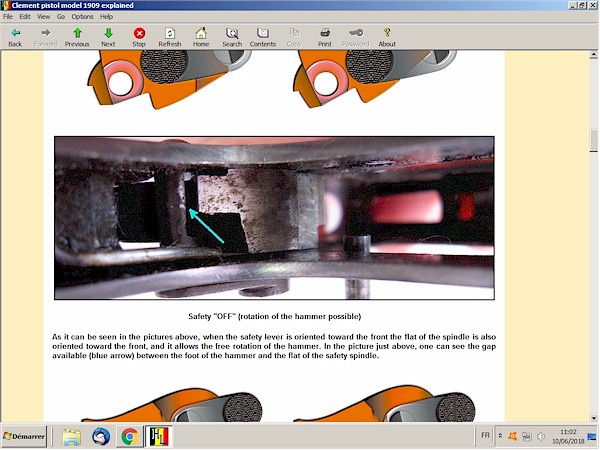

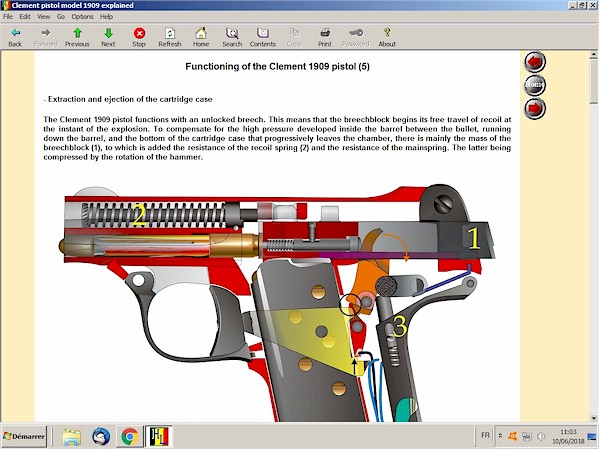

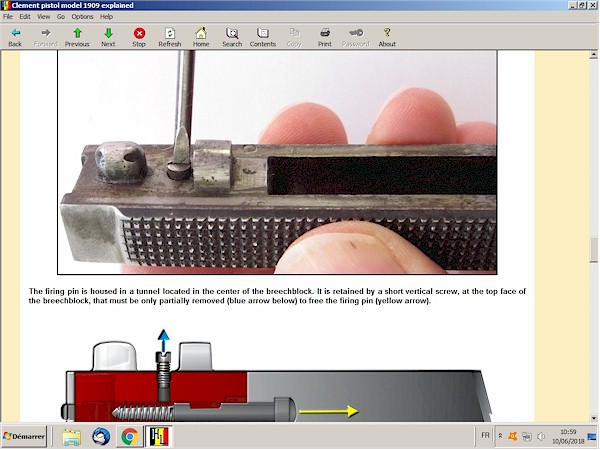

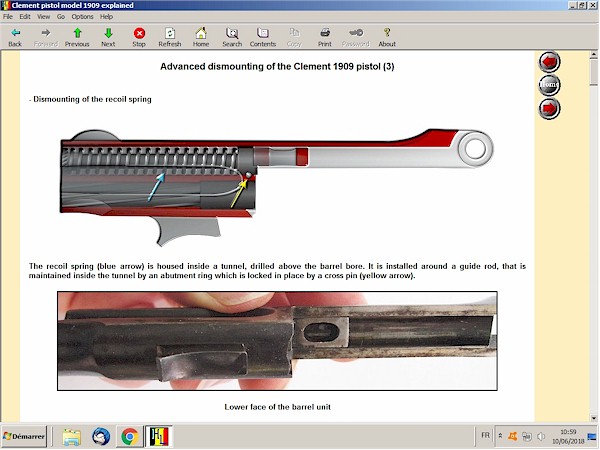

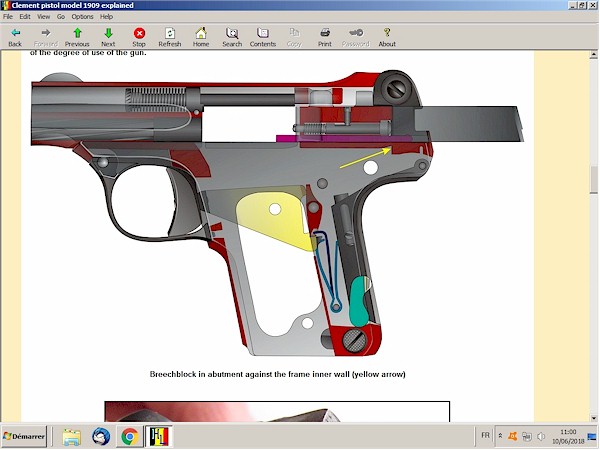

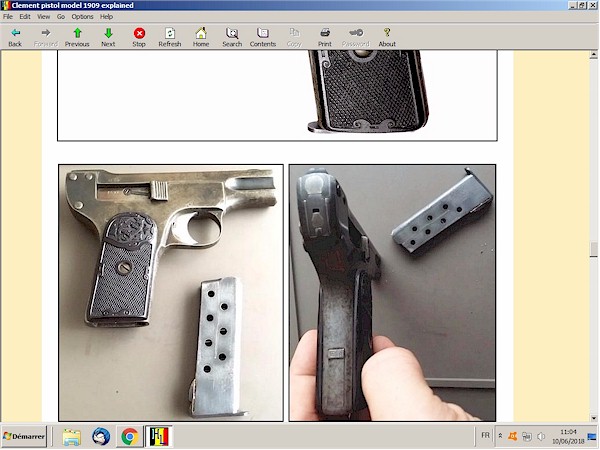

Ebook screen prints
