Revive your antique "Bulldog" type revolver in .380 CF short or long or .320 CF caliber
(.38 short or long Colt - .320 short Colt and .32 Colt).

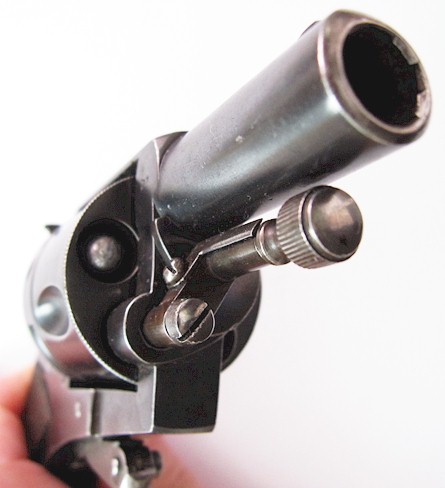

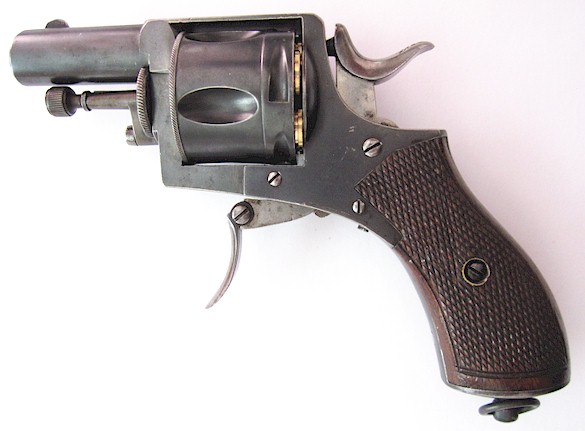

Belgian bulldog revolver in caliber 380 CF

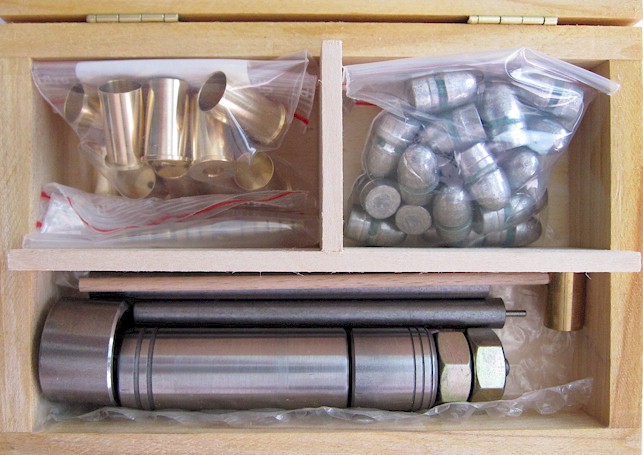

Full Kit for .380 centerfire Short or Long (.38 Colt)

Content: tools (same for short and long case) + 12 (short or long) reloadable brass cases + 25 round nose bullets + 25 primers (not shipped toward certain countries - without reduction of the kit price). Delivered in a wood box.

.380/.320/.32 SW/.38 SW/.450 WEBLEY centerfire - PRICE LIST

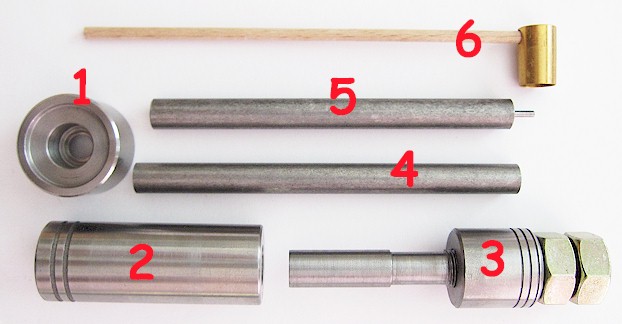

Tools furnished : base (1), Resizing tool (2), Bullet seating rod (3), Pushing rod (4), Primer cap ejector (5), Power measure (6)

Caliber .380



Case and bullet dimensions :

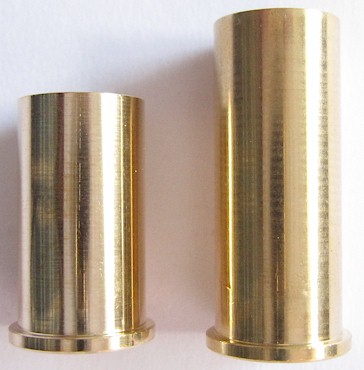

.380 long: Case diam. = .375" - Rim diam. = .430" - case length = .960" - Overall length = 1.390"
.380 short: Case diam. = .375" - Rim diam. = .430" - case length = .700" - Overall length = 1,145"


bullet weight : 10 grams (base diam. = .358" - total length .708")


Caliber .320


Case and bullet dimensions for the .320 caliber :
Case diam. = .315" - Rim diam. = .370" - case length = .650" - Overall length = 1.025"


bullet weight : 6 grams (base diam. = .288" - total length .511")

How it does work.

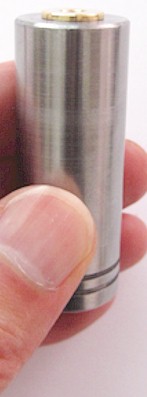

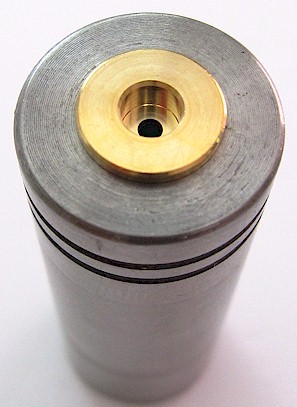

Install the shell upside down in extremity of the resizing tool with two grooves

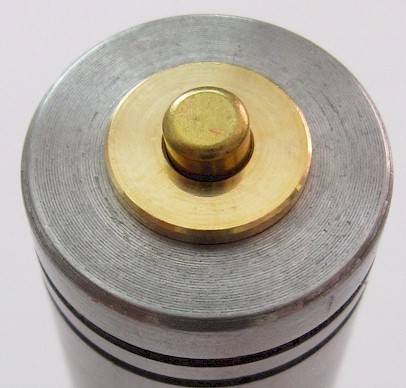

Position the priming cap (small pistol type) on the case pocket

When the priming cap is positioned on the case pocket, you have to find the most appropriate tool to gently press the cap inside the pocket.

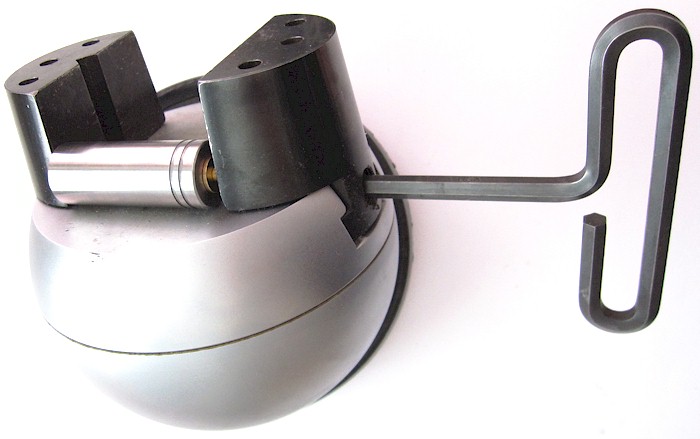

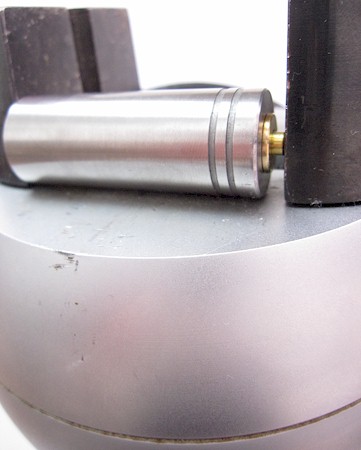

One most easy way is to use a vise (no doubt that an engraving vise, as shown above, is one of the handiest). The whole assembly (resizing tool and cartridge) is positioned between the jaws, and the priming cap is gently forced inside the case pocket through the vise jaws pressure.

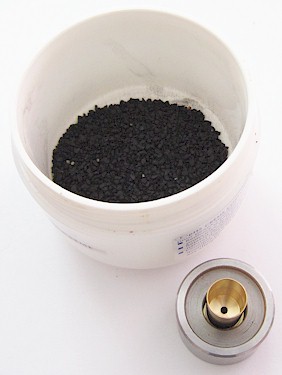

Install the primed case on the base ring as shown above, and fill the case with black powder until reaching the limit of the bullet seating (must be evaluated before). The primer measure furnished with the kit can be used as spoon, but it was not calibrated for the exact quantity.


Engage now the base of the lead bullet in the mouth of the loaded case. Try to position the bullet as most vertical as possible to ease the next step.

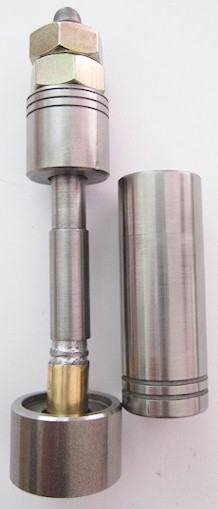

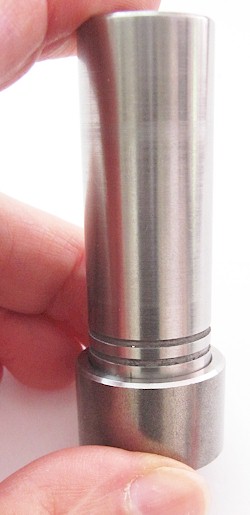

Put the resizing tool above the base ring so as to surround the cartridge. Notice, that the two external grooves of the resizing tool are below.

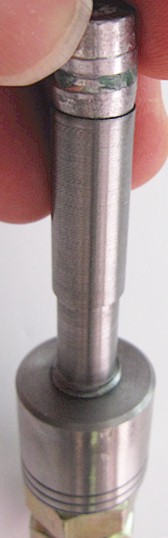

Take now the bullet seating rod, and let it drop inside the resizing tool until it is stopped by the bullet (third picture above). The extremity of the bullet seating rod is hollowed to match the bullet profile (second picture). The bullet seating rod is fitted with two nuts that will be used to lock the grooved central nut at the correct vertical positioning on the rod, when the first bullet will be properly seated inside the case.



With a nylon mallet strike the seating rod, while verifying from time to time the bullet progression. Stop when perfect seating is reached.

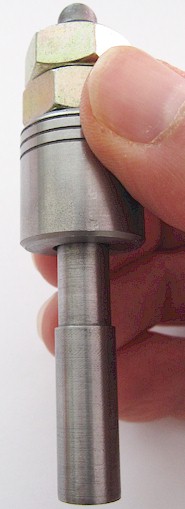

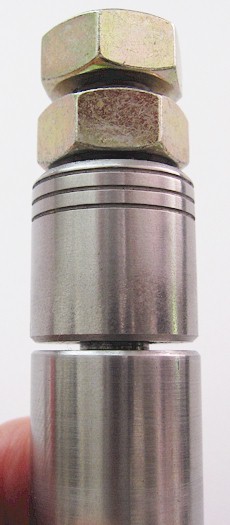

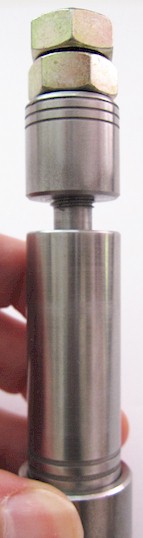

Central cylindrical nut lowered against the resizing tool and locked by the two hexagonal nuts.

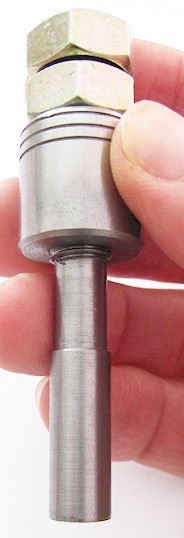

When perfect seating of the bullet has been reached, just lower the central grooved nut against the resizing tool (by rotating it clockwise), and lock it using the two standard hexagonal nuts above. The bullet seating rod is then set to the exact length (second image above), and a subsequent seating will be performed more quickly without verification of the bullet progression inside the case.

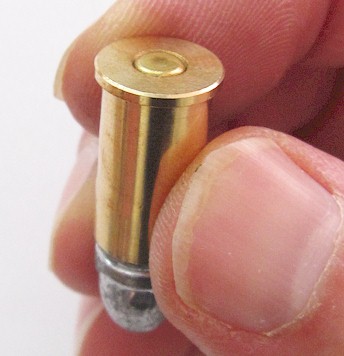

You have now one cartridge made, and ready for the shooting range.

After firing


Removal of the crushed primer cap

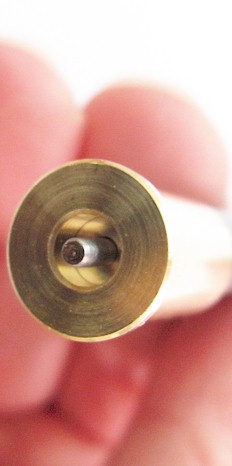

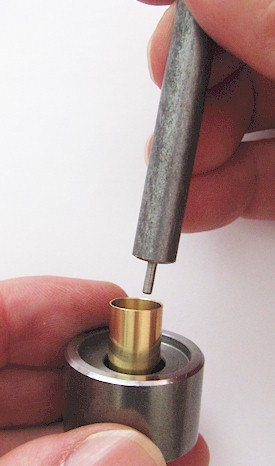

After firing, in order to re-use the case, the primer must be first removed. This can be done using the short rod with a thinned extremity. The case is positioned on the base ring, and the de-capping rod is introduced inside the case. The thin extremity bears against the inner face of the primer cap. You have just to tap in the rod until the primer is pushed out of the case pocket.

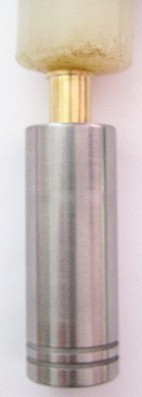

The cartridge case, which is very strong, is generally only very slightly widened by the explosion, and could probably be re-used without resizing. If resizing proves necessary, it can be done using the resizing tool. Clean the case, and lube it at its external face. Then enter it in the extremity opposite to the one with the grooves. Then press the case until totally enclosed in the resizing tool. This should be done more easily using a vise (with padded jaws), but a nylon mallet can also be used.


The pushing out of the resized case can be performed using the intended rod (4) provided in the kit.
